As part of our free web graphics section of the blog, we recently released the Navigation Bars. In the comments of that post, folks asked us if we’d explain how to use them into a theme.
Easy to Implement with the Genesis Framework
If you are running any of your sites on the Genesis Framework, using the icon set for bloggers is quite simple – and only requires a few steps.
Every child theme has a primary and secondary navigation, which are defined in the style.css by #nav and #subnav respectively. For this example, I’m going to use the primary navigation and blue navigation bar.
Upload Navigation Bar Images to Your Server
The first thing you should do is download a fresh copy of the navigation bars. Inside the zip file you’ll see the PSD file for the navigation bars, but also 3 folders – blue, green and black.
Open up the blue folder, and copy all 4 image files you see: nav-blue-hover.png, nav-blue-line.png, nav-blue.png and nav.home. You will now need to upload those images into your child theme’s images folder.
Add CSS to Style Your Navigation Bar
After you’ve uploaded the images, you’ll need to open up your child theme’s style.css file and look for the primary navigation elements. That will begin here:
/* Primary Navigation ------------------------------------------------------------ */
Immediately after that you will see a number of CSS definitions for the #nav and it’s related selectors. You can delete all of that up until you get to this:
/* Primary Navigation Extras ------------------------------------------------------------ */
And replace it with this:
#nav {
background: url(images/nav-blue.png);
clear: both;
color: #fff;
margin: 0 auto;
overflow: hidden;
text-transform: uppercase;
width: 960px;
}
#nav ul {
float: left;
padding: 0 0 0 10px;
width: 950px;
}
#nav ul ul {
padding: 0;
}
#nav li {
background: url(images/nav-blue-line.png) no-repeat top right;
float: left;
list-style-type: none;
padding: 0 2px 0 0;
}
#nav li.right,
#nav li li {
background: none;
padding: 0;
}
#nav li.home a,
#nav li.home a:hover {
background: url(images/nav-home.png);
height: 50px;
padding: 0;
text-indent: -9999px;
width: 50px;
}
#nav li li {
background: none;
padding: 0;
}
#nav li a {
color: #fff;
display: block;
font-size: 13px;
padding: 14px 15px;
position: relative;
text-decoration: none;
}
#nav li a:hover,
#nav li a:active,
#nav .current_page_item a,
#nav .current-cat a,
#nav .current-menu-item a {
background: url(images/nav-blue-hover.png);
color: #fff;
}
#nav li a.sf-with-ul {
padding-right: 25px;
}
#nav li a .sf-sub-indicator {
background: url(images/arrow-down.png) no-repeat;
height: 10px;
position: absolute;
right: 10px;
text-indent: -9999px;
top: 20px;
width: 10px;
}
#nav li li a,
#nav li li a:link,
#nav li li a:visited {
background-color: #1790d1;
border: 1px solid #0274be;
border-top-width: 0;
color: #fff;
font-size: 12px;
padding: 5px 10px;
position: relative;
text-transform: none;
width: 138px;
}
#nav li li a:hover,
#nav li li a:active {
background: none;
background-color: #0274be;
}
#nav li li a .sf-sub-indicator {
background: url(images/arrow-right.png) no-repeat;
top: 10px;
}
#nav li ul {
height: auto;
left: -9999px;
margin: -3px 0 0;
position: absolute;
width: 160px;
z-index: 9999;
}
#nav li ul a {
width: 140px;
}
#nav li ul ul {
margin: -33px 0 0 159px;
}
#nav li:hover>ul,
#nav li.sfHover ul {
left: auto;
}
li:hover ul ul,
li.sfHover ul ul {
left: -9999px;
}
li:hover,
li.sfHover {
position: static;
}
Setting up the Home Icon for the Home Link

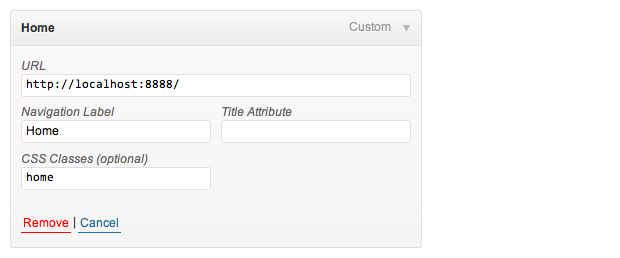

If you want to use the icon as seen in the example of the Navigation Bars, it’s quite simple. Inside your custom menu screen, open up your Home link box and look for the CSS Classes (optional) option and enter home as the value. You can see what that looks like here:
If you don’t see the CSS Classes (optional) box, you can enable it by opening up the Screen Options menu in the upper right hand corner of your dashboard (next to the Help tab) and clicking on the CSS Classes option.
